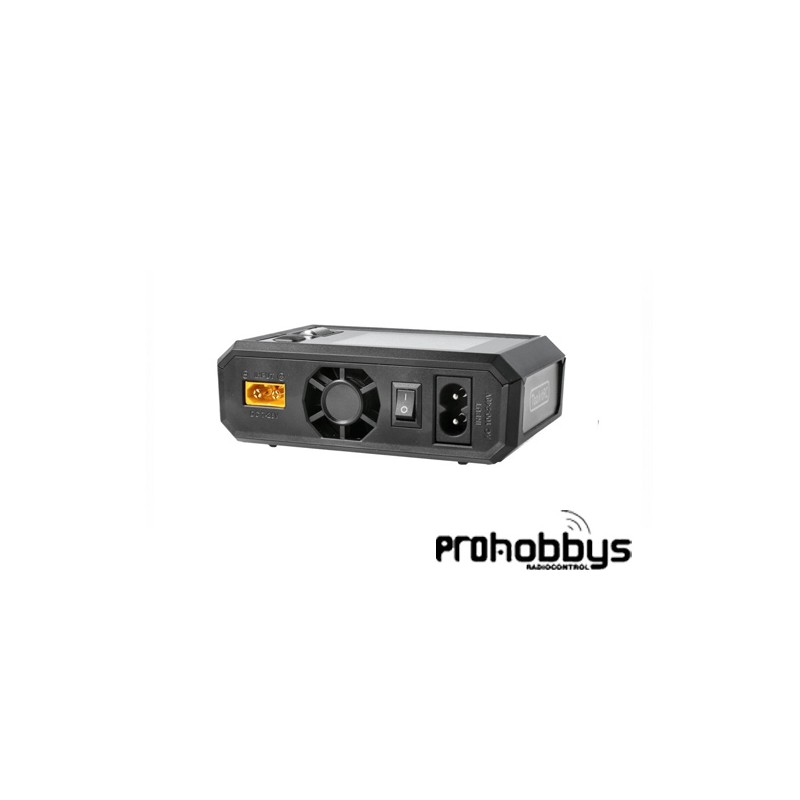

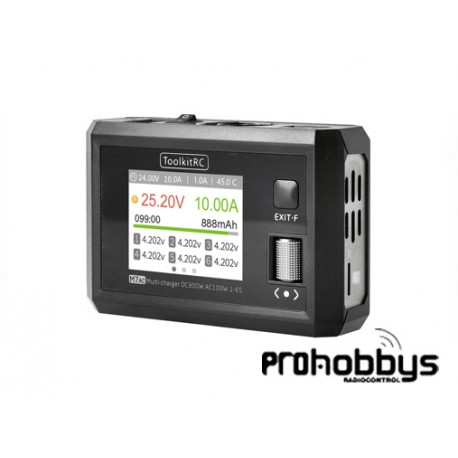

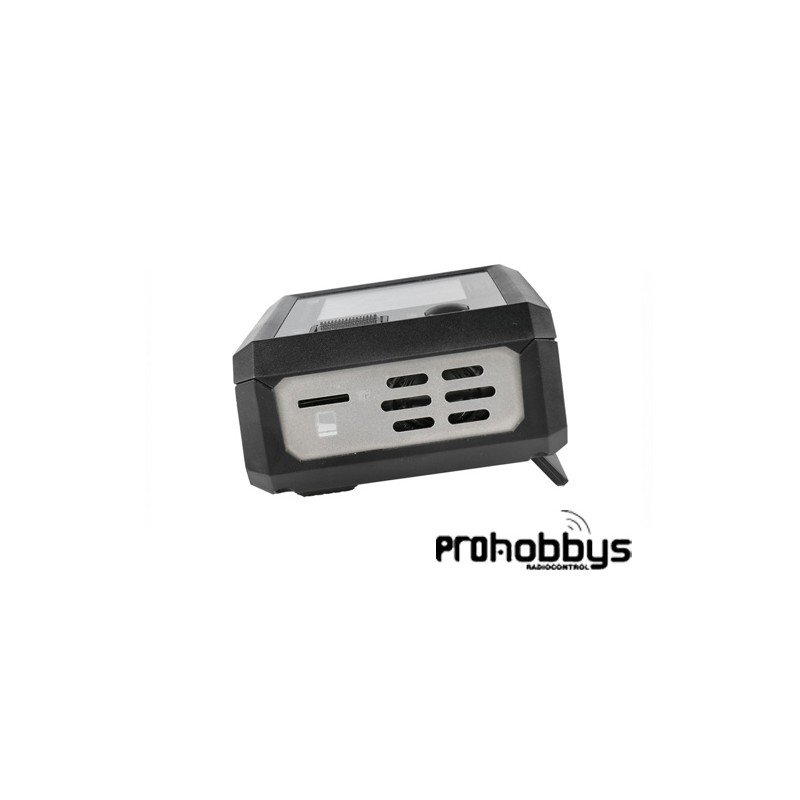

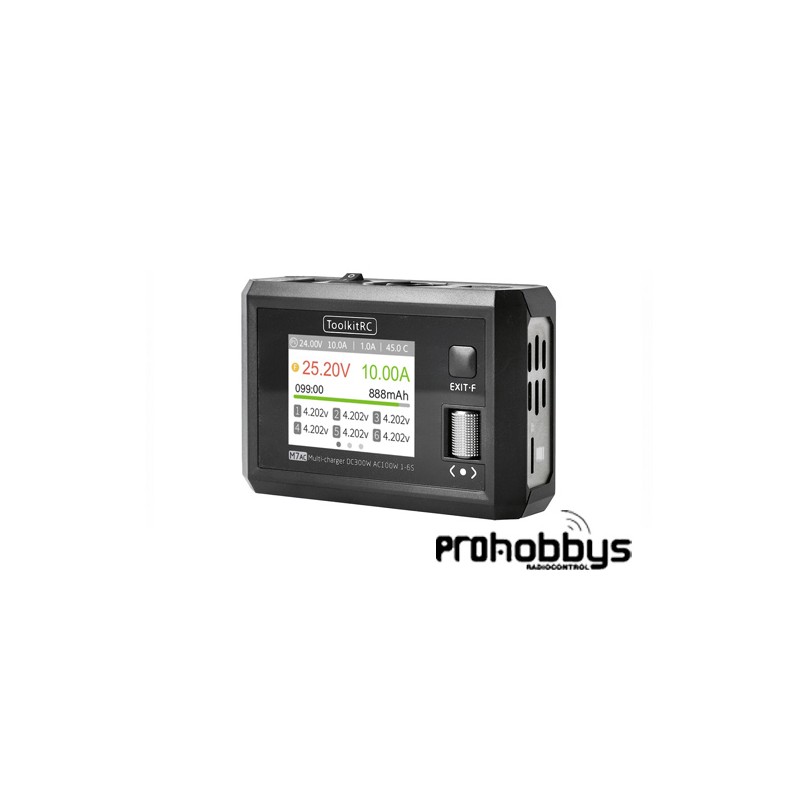

Cargador AC/DC M7AC Lipo 1-6S 15A Toolkit

TK12200-EU

Nuevo producto

  • Descripción:
  • Product information "M7AC LiPo 1-6S 15A Charger AC/DC"
  • The M7AC is a charger with a variety of different functions such as balance charging and discharging. However, it can be used precisely as a signal measuring device or directly as a signal source in terms of PWM, PPM and SBUS signals.

Más detalles

1 Elemento

89,90 € impuestos inc.

Añadir a la lista de deseos

Más

  • Features:
  • Up to 300W charging power and maximum 15A charging current
  • Max. 300W discharge power
  • Multifunction device
  • Charger
  • Meter for voltage, resistance, PWM/PPM/SBUS signals
  • Playback of PWM/PPM/SBUS signals
  • Multilingual user interface including voice output
  • Upgradeable via USB
  • Various security controls
  • Technical Specifications:
  • Input Voltage: AC 100-240V, max. 100W
  • DC 7-35V, max. 20A
  • Charge Power: 0.1-15A, 300W
  • Discharge Power: 0.1-15A, 300W (Rec/Ext. Mode)
  • 0.1-3A, 15W (Intern. Mode)
  • Charging Accuracy: <0.005V
  • USB A: 5.0V, 10W (or Upgrade)
  • Balance Current: 800mA, 4.2V
  • Cells LiPo/LiFe/LiIon/LiHV 1-6S
  • Cells: NiMH/NiCd 1-16S
  • Pb Battery Voltage: 1-10S
  • Voltage: 1.0V-5.0V, 1-6S
  • Display: LCD, IPS 2.4'' 320x240px
  • TF Card: Supports 128MB to 16GB
  • Dimensions: 112x73x38mm
  • Weight: 245g
  • Measurement & Output:
  • Measurement PWM 880us-2200us, 20-400hz
  • PPM 880us-2200us x8 CH, 20-50hz
  • SBUS 880us-2200us x16 CH, 20-100hz
  • Output PWM 500us-2500us, 20-1000hz
  • PPM 880us-2200us x8 CH, 50hz
  • SBUS 880us-2200us x16 CH, 74hz
  • Power 0.5-15A, 1-28V, Modus: CC+CV

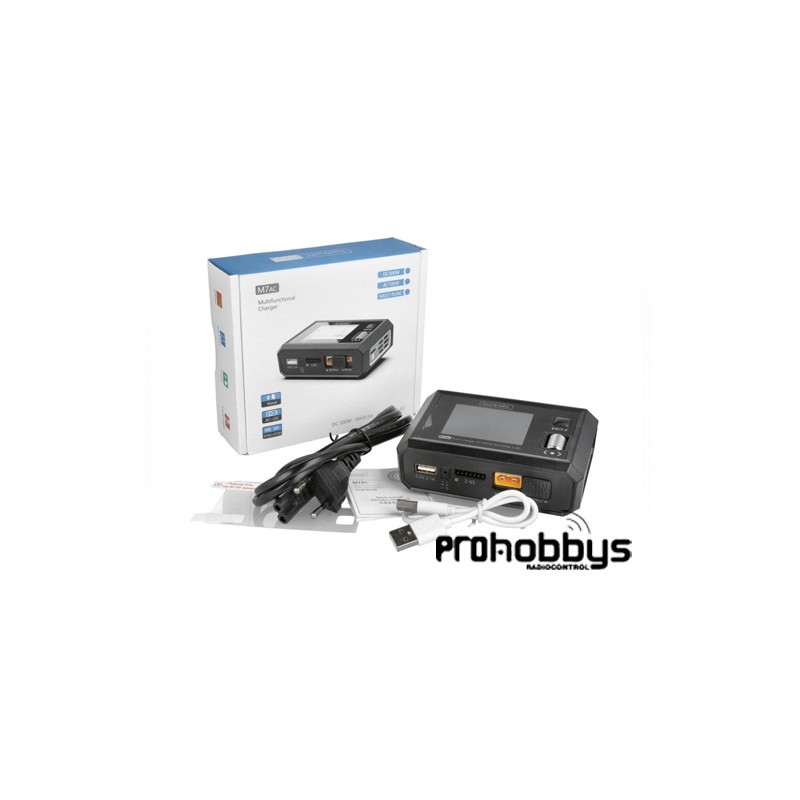

  • Delivery:
  • 1x M7AC Charger
  • 1x Power cable
  • 1x USB cable
  • 1x Display protection
  • 1x Manual
